Product Description

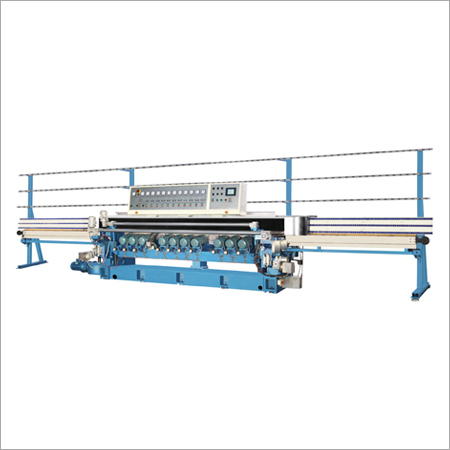

Glass Straight-line Beveling Edging Machine is the latest development of a new of type of straight-line beveling edging machine. It is characterized by use of the bevel grinder, both overall progression, but also the overall elements of the new technology. With the traditional pre-beam technology or behind beam movements, compared to a more simple structure, better stability, higher precision grinding characteristics are attained. Used three grinding, the bottom edge of an amendent, three of fine grinders, two polished design, with the current advantages of the latest foreign technology, a step-less speed regulating motor drive, the installation of pneumatic polishing. This equipment assures easy operation, maintenance, performance and stability, bevel of the rough, accurate grinding and polishing and grinding a bottom edge can be completed to meet the different thickness, size and different grades of glass grinding requirements.
Main specifications
- Occupy Area( LengthXWidthXHeight): 7800x1000x2500mm
- Weight: 4600kg
- Total Power: 23kw
- Processing Speed: 0.8-4m/min
- Width of grinding bevel edge: 3-35mm
- Bevel of angle: 3o-35o
- Processing range:
- Processing min glass size: 30X60mm
- Glass Thickness: 3-12mm
