Product Description

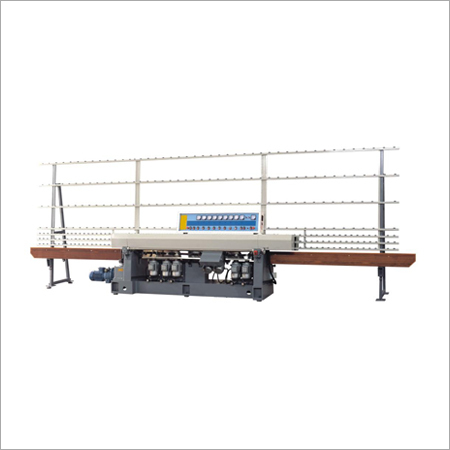

DE272 Glass Edging Machine adopts chainless ball bearing construction which ensures stable transfer. it is suitable for edge grinding and polishing. The control system adopts PLC control which can be changed between automatically and manually. The human-machine interface displays the glass thickness, processing speed and other specifications clearly. The machine can grind and clean the rear transmitting plate by itself. The charge part may lift up and down manually.
Main Technical Specifications
- Model: DE272
- Range of speed: 0.6-6m/min
- Min processing width: 30mm
- Glass thickness: 3-30mm
- Total power: 27.47KW
- Total weight: 5800Kg
- Overall dimension: 8000x1500x2200mm
