Product Description

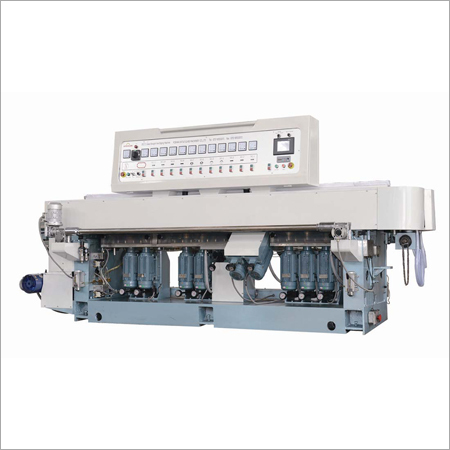

DME6122-DME6022-DME6322 Glass Angle-changing Edging Machine adopts chainless ball construction which ensures stable transfer. It is possible to execute flat edge or stanted edge from 0 to 45°with side arises. The control system adopts PLC control which can be changed between automatically and manually. The human-machine interface displays the glass thickness, edge slope, processing speed and other specifications clearly. The machine can grind and clean the rear transmitting plate by itself. The charge part may lift up and down manually.
Technical Specifications
| Model | DME6122 | DME6022 | DME6322 |
| Range of speed | 0.6-6m/min | 0.6-6m/min | 0.6-6m/min |
| Min.processing glass size | 60mm | 60mm | 60mm |
| Processing glass thickness | 3-30mm | 3-30mm | 3-30mm |
| Total power | 26.52KW | 25.02KW | 32.07KW |
| Total weight | 5800Kg | 5000Kg | 6800Kg |
| Overall dimension | 8000x1500x2200mm | 7650x1500x2200mm | 9000x1500x2300mm |
